Sold

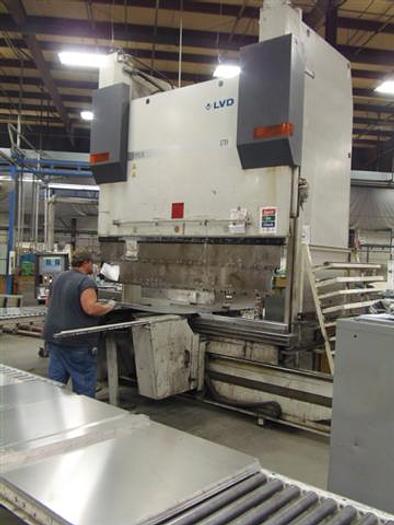

LVD Model PPEB 170/30, 187 ton x 120" O.A., 102" BET., 9 AXIS CNC Hydraulic Press Brake, 2001 5215

Brampton, Canada

Description

GENERAL SPECIFICATIONS:
RAM SPEED
EQUIPPED WITH:
CADMAN MICROSOFT BASED 9 AXIS CNC CONTROL
2 SHEET FOLLOWERS
10" & 12" RAM FILLER PLATES (AS SHOWN IN PHOTO)
FLUSH FLOOR MOUNT
ALSO CALLED STRIPPIT MODEL 190 BH 10

Specifications

ManufacturerLVD
ModelPPEB 170/30
Year2001
ConditionUsed
New2001
Stroke23.6" 600mm
Tonnage187 U.S. 170 METRIC
Working30 IPM 12.7mm/s
Main motor29.5 HP 22kw
Cnc controlCADMAN CNC
Open height47.25" 1200mm
Return speed307 IPM 130mm/s
Throat depth15.94" 405mm
Closed height23.6" 600mm
Approx. weight42,000 LBS
Rapid approach236 IPM 100mm/s
Working length120" 3050mm
Backgauge length48"
Approx. dimensions14'L X 10'2"W X 15'2"TALL
Distance between uprights102.3" 2600mm
