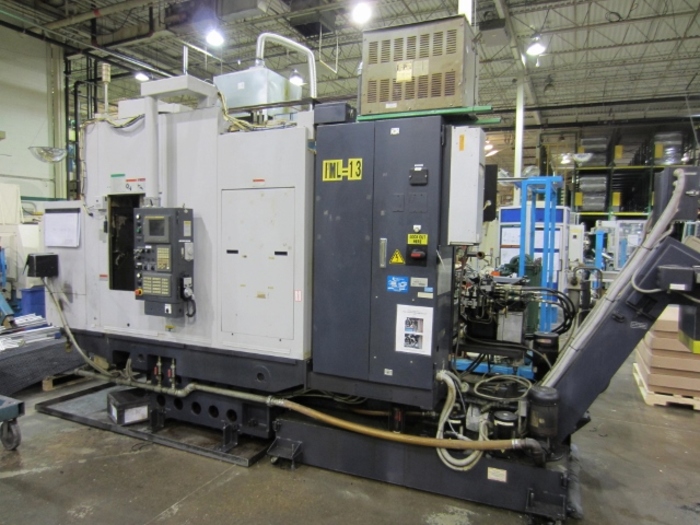

Enshu Model JE30S Horizontal Machining Centre 5391

Contact us for price

Brampton, Canada

orCall (905) 793-8080

Description

Equipped with:
-Fanuc 21i-MB control
-Chip conveyor
-Full enclosure

Specifications

ManufacturerEnshu
ModelJE30S Horizontal Machining Centre
ConditionUsed
Travel-x19.7"
Travel-y13.8"
Travel-z11.8"
Electrics220/3/60
Pallet size12.5" x 12.5"
Atc capacity16 tools
Spindle motor7.5HP (5.5KW)
Spindle speed40 -13,000 RPM
Spindle taperBT 30
Rapid feed rate2,362 IPM
Cutting feed rate04-590.55 IPM
Number of pallets2
Approximate weight8,800 Lbs
Minimum index angle0.001deg
Table load capacity990 Lbs.
Approximate dimensions48.5" x 125" x 95.5" H
