Sold

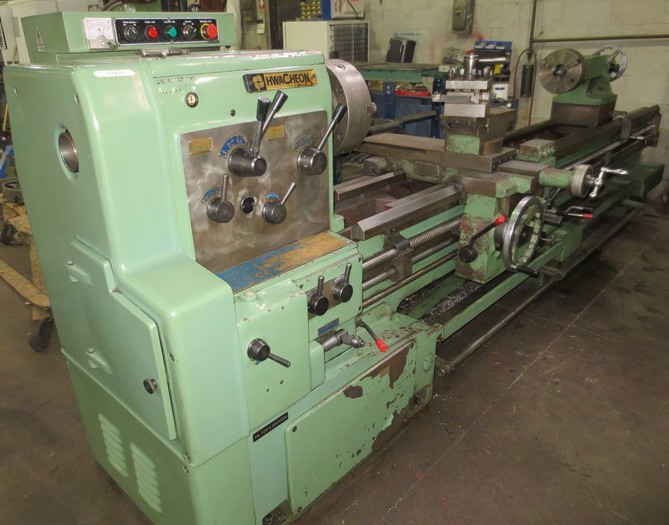

28" x 120" Hwacheon Model HL-720 Heavy Duty Engine Lathe 5546

Brampton, Canada

Description

Equipped with: -12" 3-jaw chuck -16" 4-jaw chuck -10" 3-jaw live centre chuck -Steady rest -Follow rest -Faceplate -Rapid feed on carriage and cross slide -Square toolpost -Inch/metric threading -Coolant pump -Foot brake -Two speed tailstock quill

Specifications

ManufacturerHwacheon
ConditionUsed
Electrics550/3/60
Dimensions179" x 47" x 48" H
Main motor15 HP
Spindle bore3"
Spindle noseD1-8
Width of bed18 1/4"
Spindle speeds27 - 1,205 RPM
Swing over bed28.3"
Tailstock taper5 MT
Approximate weight10,500 Lbs.
Swing over cross slide19.7"
Distance between centres120"
Tailstock spindle travel6"
