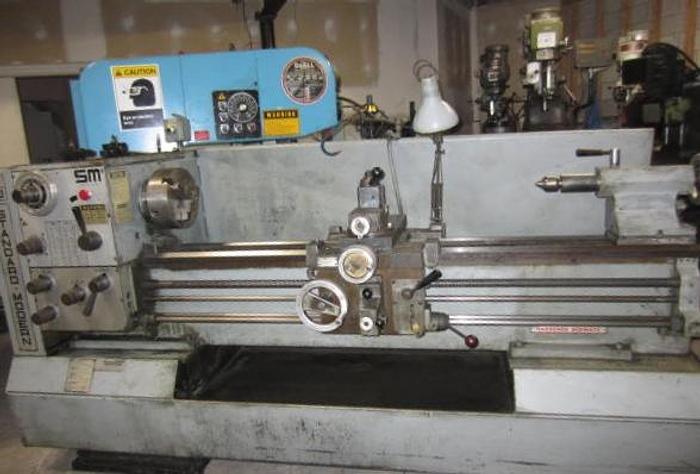

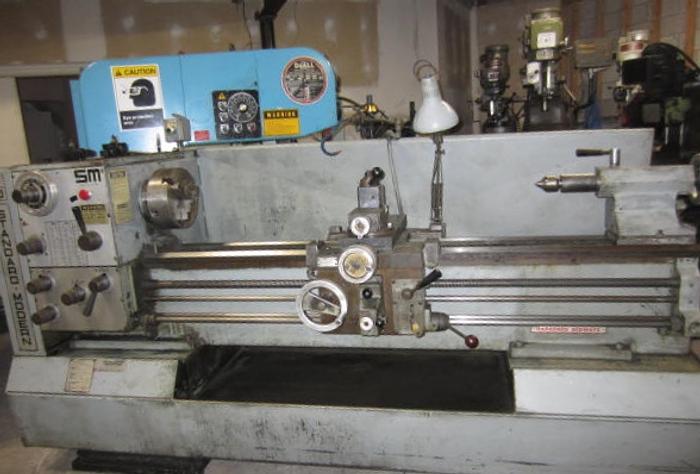

16" x 60" Standard Modern SM-1660 Heavy Duty Engine Lathe 5602

Contact us for price

Brampton, Canada

orCall (905) 793-8080

Description

Equipped with:
-3-jaw chuck
-Quick change tool post with 2 holders
-Inch/metric threading
-Inch/metric dials
-Live centre
-Splash guard
-Feed and leadscrew reverse
-Electric brake-self actuating

Specifications

ConditionUsed
Electrics440/3/60
Dimensions36" x 100" x 60"
Main motor7.5 HP
Spindle bore2"
Spindle noseD1-6
Spindle speeds40-2000 RPM
Swing over bed17"
Tailstock taper4 MT
Approximate weight3,100 Lbs.
Swing over cross-slide10"
Tailstock quill travel5"
Distance between centres60"
