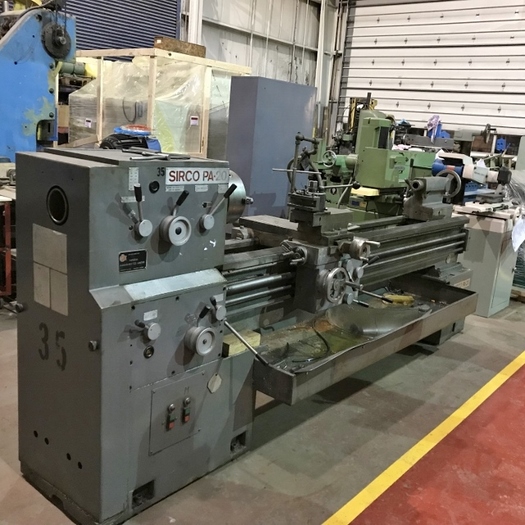

20" x 80" Sirco Model PA20-4 Engine Lathe with 4" spindle Bore 5611

Brampton, Canada

Description

Equipped with: -3-jaw chuck -4-jaw chuck -Steady rest -inch/metric threading -Full length splash guard -Coolant pump -Thread dial -Carriage stop -Quick change toolpost

Specifications

ConditionUsed
Electrics550/3/60
Dimensions138" x 36" x 54"
Main motor7.5 HP
Spindle bore4 1/8"
Spindle noseD1-8
Swing in gap27"
Spindle speeds22 - 1,500 RPM
Swing over bed20"
Tailstock taper5 MT
Approximate weight7,200 Lbs
Swing over cross slide13.5"
Distance between centres80"
