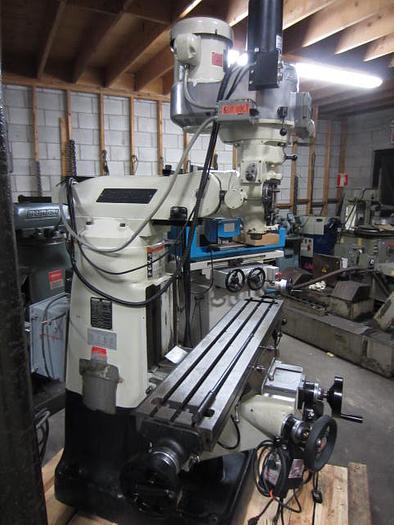

9" x 48" Bridgeport Vertical Turret Milling Machine 5608

Contact us for price

Brampton, Canada

orCall (905) 793-8080

Description

Equipped with:
-3 axes Fagor digital readout
-3 axes Servo power feed
-Power drawbar
-One shot lubrication

Specifications

ConditionUsed
Table size12" x 48"
Travel-longitudinal26 1/2"
Travel-cross12"
Travel-vertical knee16"
Travel-quill5"
Spindle taperR-8
Spindle speed-variable60-4200 RPM
Distance spindle nose to table2 1/2" x 18 1/2"
Spindle centre to column face6 3/4" x 18 3/4"
Ram travel12"
Head tilt left right45 degrees
Head tilt front-back45 degrees
Spindle motor2 HP
Approximate weight2,500 Lbs.
