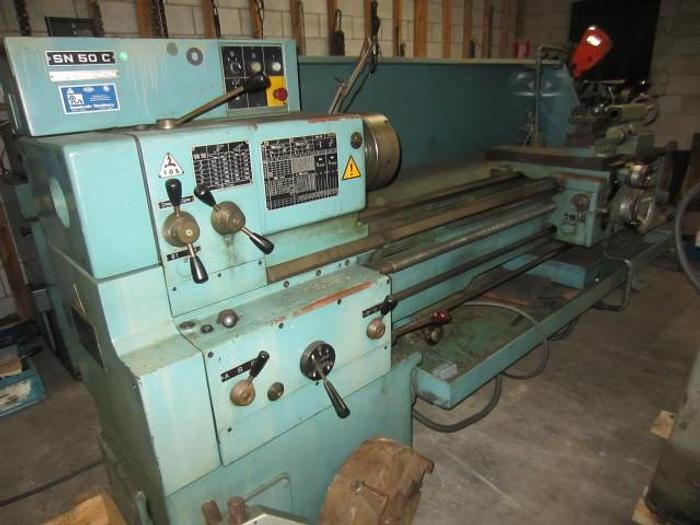

TOS SN50C/2000, 20" x 80" Engine Lathe

Swing over bed.............................. 20"

Swing in gap.................................. 27.5"

Swing Over Cross Slide................. 10.6"

Distance between centers.............. 80"

Spindle bore................................... 2"

Spindle nose.................................. D1-6

Spindle speed................................ 2000 RPM7

Main motor..................................... 7.5 HP

Electrics......................................... 575/3/60

Dimensions.................................... 147” L X 58” D X 65” H

Approximate weight....................... 4500 LBS

Equipped with:

-3-jaw chuck

-4-jaw chuck

-Steady rest

-Follow rest

-Rapid feed longitudinal and cross

-Coolant pump and tank

-Full length splash guard
