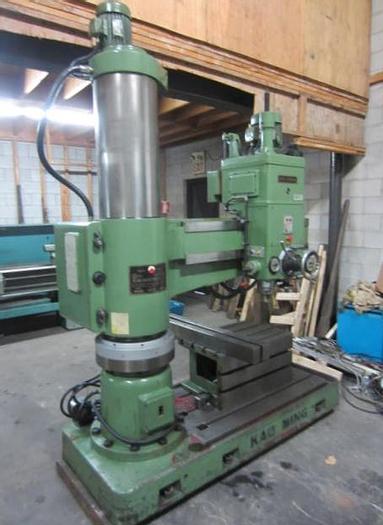

Kao Ming KMR-1250DH, 4' Radial Drill

Capacity drilling-mild steel................................................. 2"

Spindle speeds.................................................................. 35-1580RPM

Spindle taper...................................................................... 5 MT

Spindle travel..................................................................... 11 3/4"

Main motor......................................................................... 5 HP

Electrics............................................................................. 575/3/60

Distance between spindle centre and column face........... 49"/14"

Distance spindle to base surface....................................... 54 1/2"/15 1/4"

Column diameter................................................................ 13 3/4"

Height of column................................................................ 106"

Max height spindle head to base........................................ 121"

Floor space......................................................................... 92" x 45"

Spindle head longitudinal travel.......................................... 35"

Vertical arm travel................................................................ 27 1/2"

Approximate weight............................................................. 7650 Lbs

Equipped with:

-Box table

-Coolant pump

-Power clamping and elevation
